“This amp’s dynamics are off the charts.” We review Bartel Amplifiers’ Swingland 1x12 combo and find a low-watter that delivers high-wattage tone, response and feel

Ever since establishing his former Tone King brand with the release of the first Imperial combo in 1993, Maryland-based amp designer and manufacturer Mark Bartel has done things somewhat differently. His distinct path was always obvious in both the retro looks of his creations and the original circuits, which cleverly blended versatile classic American and British voicings without directly copying anything that had gone before.

And while Tone King amps were always highly regarded for their quality, that aspect of his work has clicked up a notch over the past several years in the amps he now builds under the Bartel Amplifiers name. Like the Roseland, Starwood and Sugarland models before it, the new Swingland is based on a design so individual the word “original” barely covers it. Add the hand-wired circuit and artisan-grade cabinet, and it’s a creation entirely unto itself.

And beyond all that, the new model’s entire M.O. centers on it being what Bartel feels is the first low-wattage guitar amp with genuine high-wattage tone, feel and body—if not volume. More than two and a half years in development, he feels the Swingland is ideally suited to today’s lower-output environments, while keeping the response and dynamics of a tube amp front and center in what is otherwise a rapidly evolving amplification landscape. Let’s bring in its creator for his own summation of the objective at hand.

“A lot of customers for my three legacy models use them exclusively for playing at home or in the studio,” Bartel says. “These amps have an excellent master volume circuit but are ultimately designed to accommodate both home/studio use and live playing in clubs. The Swingland amp is designed specifically for studio/home use and has a more sophisticated architecture for greater control over the harmonic content and dynamics to better deliver the sound and feel of a cranked vintage amp, but at low volume.

“I realize it’s an unusual product in this market because, in spite of its low output power, it’s a proper master-built amp loaded with innovative design work and useful features. As a home player myself, this is my ideal amp. I can’t play loudly at home, but I don’t want to compromise on tone, features or quality. If anything, sound quality is even more important when playing at home, where you can hear everything more clearly. Based on conversations with customers over the years, it seems like this may be a popular view, but time will tell.”

Specs-wise, the Swingland puts out three watts RMS using one octal-based 6SN7 tube driving a custom-made output transformer by US company Lenco Electronics, into a single 12-inch Celestion Alnico Blue speaker. The use of this dual-triode — more commonly seen in the preamp positions of some amps from the ’50s — allows for a proper push-pull output stage.

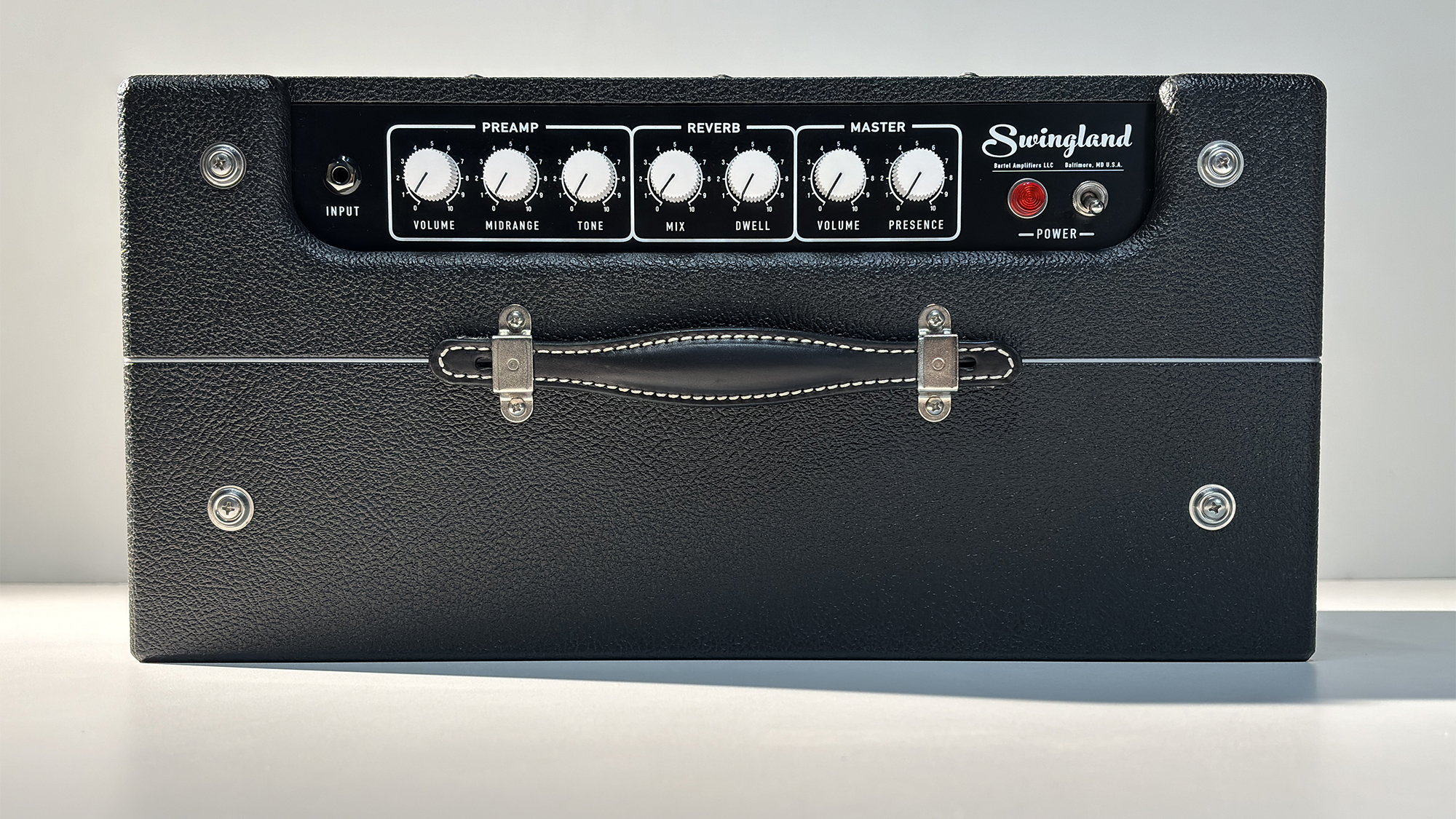

That gets Bartel part way to the “big-amp feel” versus the single-ended configurations generally used in low-wattage amps in the Fender Champ and Vox AC4 mold. One 12AX7, two 12AT7s and one 12AU7 populate the rest of the preamp and reverb stages, with controls for preamp volume, midrange, tone, reverb mix, dwell, master volume and presence.

Readers might first notice that the midrange control signals something different, and in fact both that and the tone knob operate quite differently than on traditional amps. The former is neutral when set at noon and boosts midrange frequencies above that point, while cutting them below, with the degrees of boost and cut set to different response curves to best dial in classic amp voicings. The tone control does make things brighter when turned up and darker when turned down, but is designed as more of a “tilt EQ,” which reduces bass as treble is increased, and vice versa.

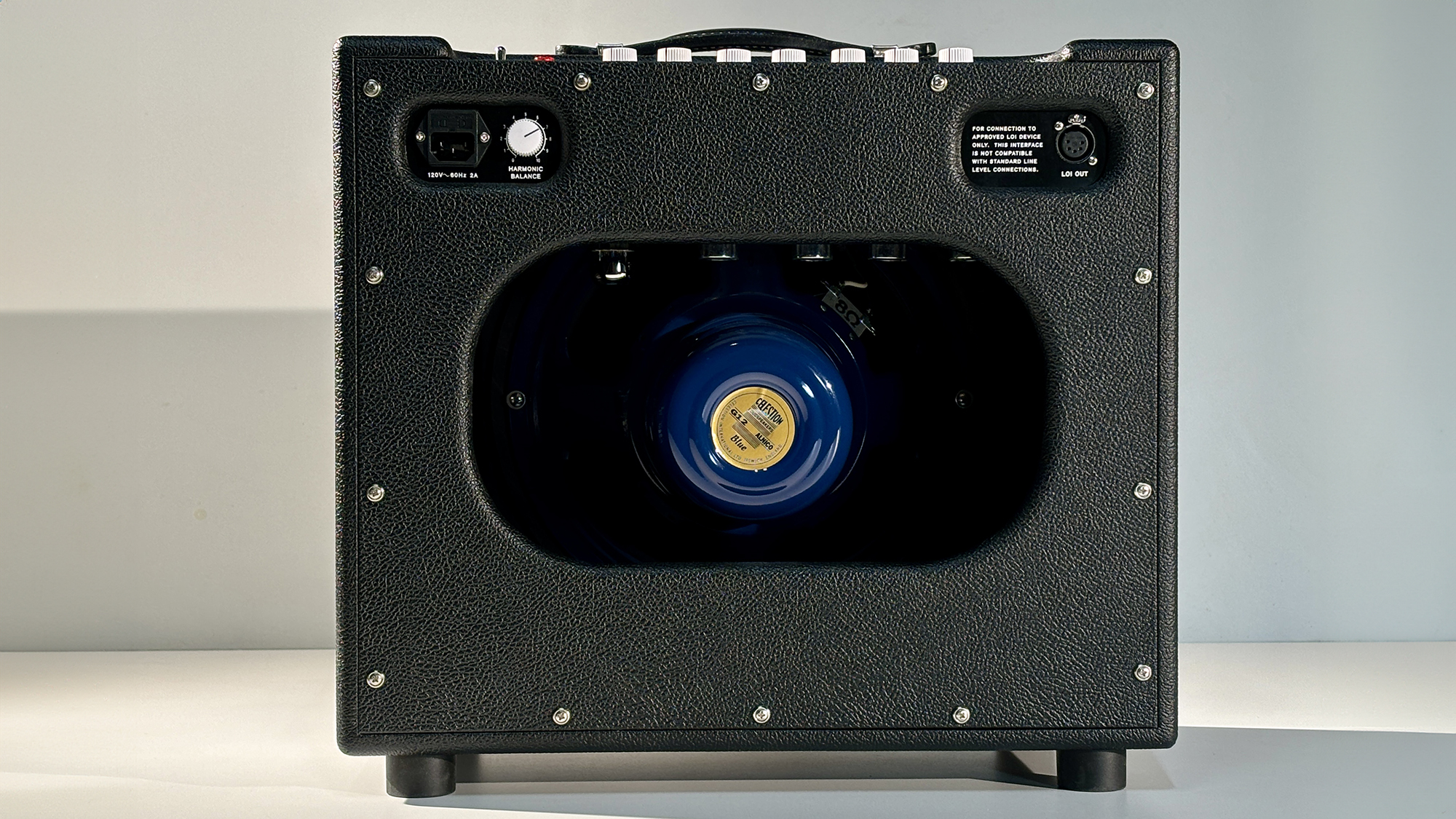

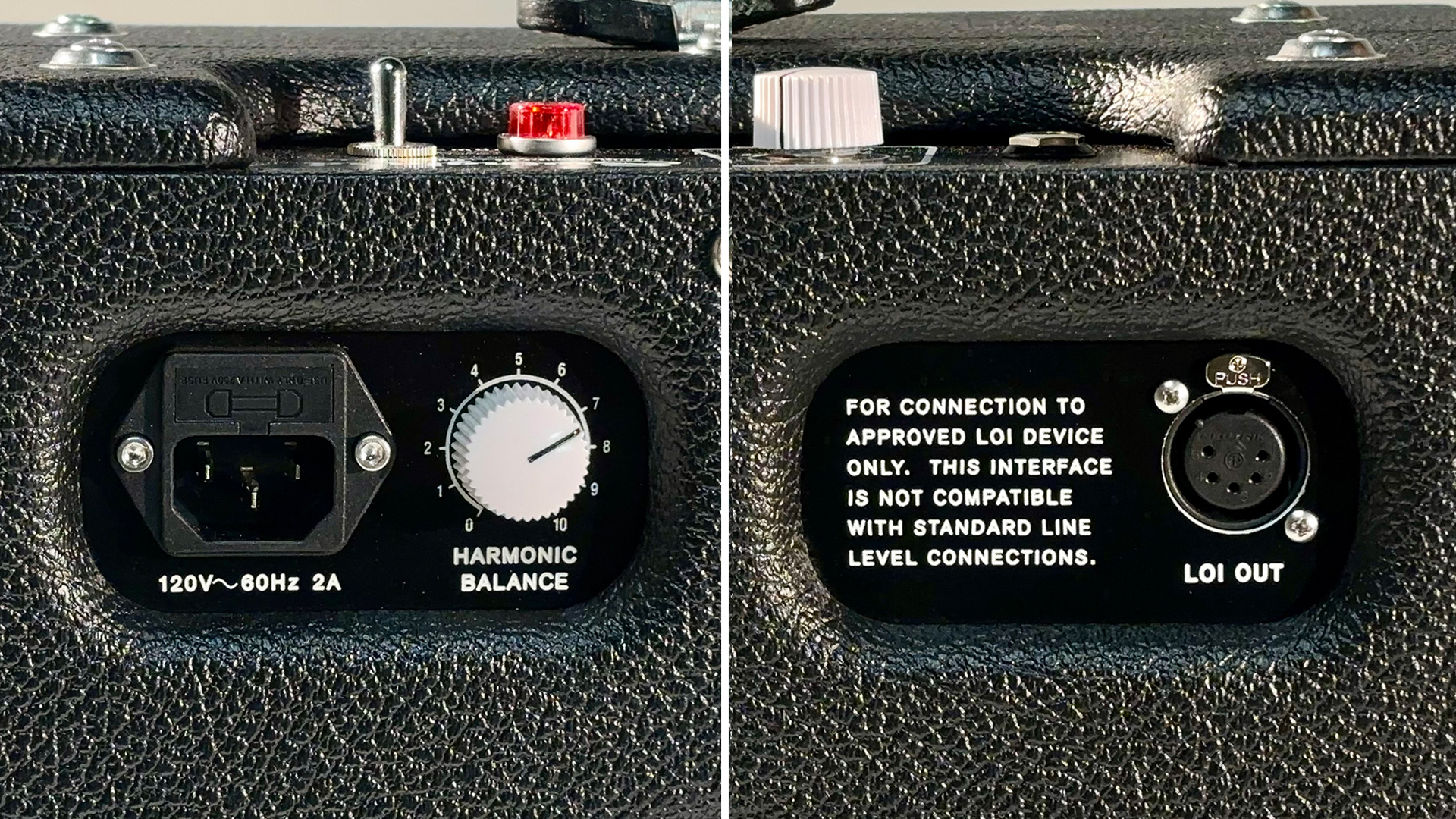

Augmenting these six top-panel knobs is a harmonic balance control on the back panel, a subtle but effective feature that fine-tunes the harmonic content of the overdriven part of the signal, taking it from bright and edgy to thick and creamy. Also round back is an enigmatic five-pin XLR jack labeled LOI (for Line Out Interface).

Still awaiting Bartel’s development of the devices that will partner with it (expected mid 2026), it’s intended to connect to three interfaces that will offer deluxe features that wouldn’t fit into the Swingland’s compact chassis. These include fully analog mic and cab simulation, an amp driver voiced to relay the Swingland’s output to a traditional guitar amp, and an unprocessed line out for use with third-party IRs.

Add it up, and it reinforces the uniqueness of the Swingland. But for all the original elements, Bartel tells us he likely put the most design effort into the core tone of the amplifier, and its overdrive content in particular.

“The overdrive stage required a lot of creative engineering and analysis, then final tuning by ear. It’s responsible for creating all of the harmonic and dynamic behavior that usually happens as a combined effort of the output tubes, phase inverter, and also a few prior stages in a conventional vintage amp. It’s far from a simple clipping circuit — it combines three concurrent strategies in a unique circuit architecture developed specifically for this model. I cycled through 27 different variations of this circuit architecture in the design process.”

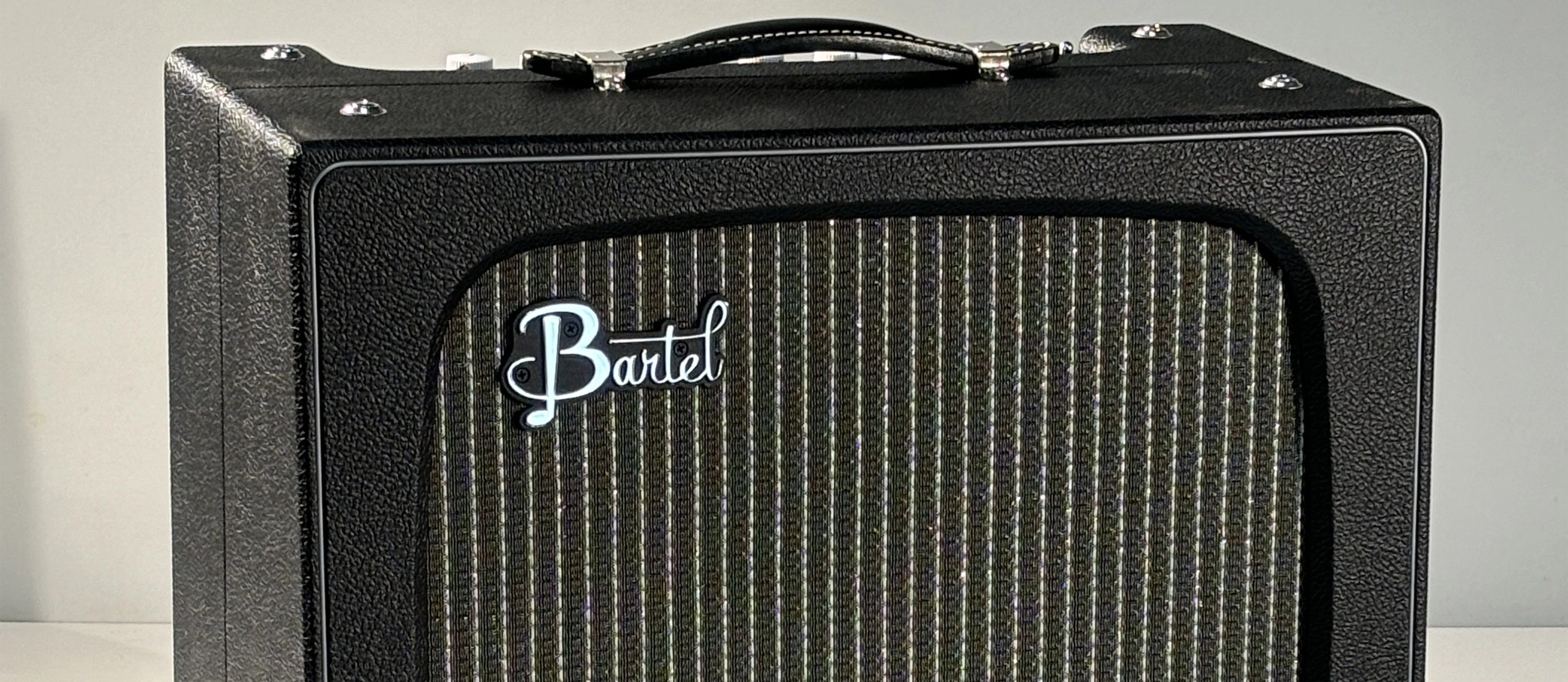

Bartel is also famous for the intense effort he puts into cabinet design, and the Swingland’s 19 by 16 by 11–inch box is no exception. It took the maker a year and about a dozen test cabs to achieve a compact combo that sounded full and deep, and which avoided the congested or “boxy” sound so often heard in smaller combos. Ultimately, he says, “I found a way to make the cabinet create an intimate, focused presentation that also fills the room with sound and creates an oversized sonic image.”

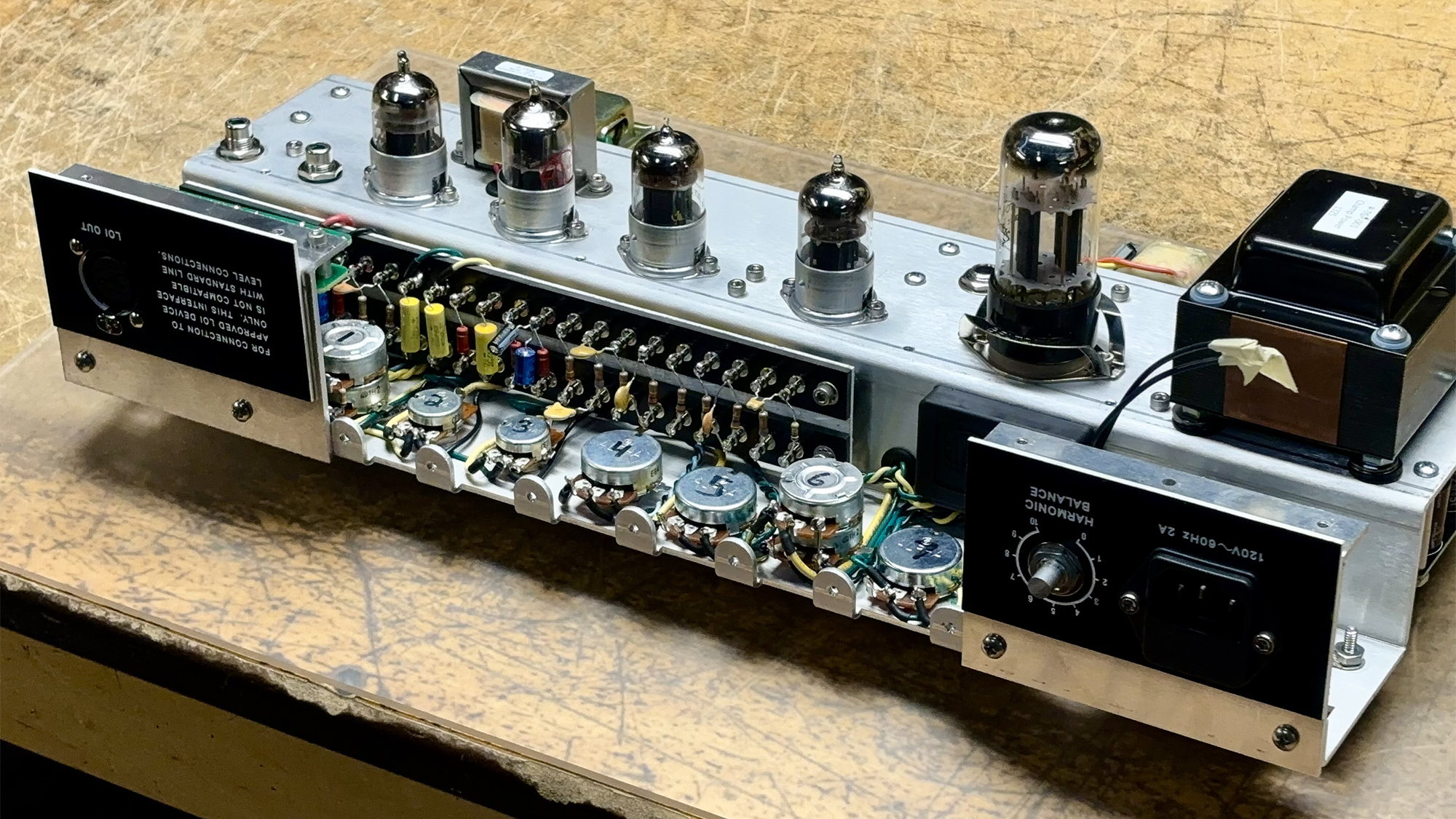

The Swingland chassis are constructed by the other two members of Bartel’s three-person team, Mike York and Nate White, with Malory 150 signal caps, carbon comp and carbon film resistors and other quality components hand-wired across rugged turret strips. It will come as no surprise to those familiar with Bartel’s builds to hear it’s among the highest-level work I’ve encountered.

Tested with a Fender Telecaster and a Gibson ES-335 semihollow, the Swingland immediately lived up to every bit of Bartel’s premise for the design, and proved one of the most rewarding sub–10 watt amps I’ve ever played. From somewhat more quantifiable qualities such as its clarity and low noise floor, to more esoteric characteristics like the texture of its overdriven sounds and the fluidity of its transition into clipping, it’s simply a delectable performer through and through.

Despite the relatively simple control complement, the Swingland can be dialed through myriad shades of clean-to-scream that enable it to emulate many of the acknowledged classics. But what I really enjoyed was how it presented such a strong personality of its own. Mix and match the broad EQ range and versatile gain staging, and there’s likely a sound in here for any player short of the metal genres, with the edge-of-breakup demands of blues, classic rock and roots rock arguably being its forte.

And while it sounds great at lower master volume settings, I’d say it could keep up with many moderate drummers in a smaller club setting with the master maxed and the preamp volume relatively high.

Amid all that, this amp’s dynamics are off the charts. When set up for heavily overdriven sounds, it achieves a gradual and varied transition into overdrive like few amps I’ve played before, revealing nuances and shades all along the spectrum as you gradually roll up your electric guitar’s volume control. And while many amps will reveal a usable clean sound from a lower guitar-knob setting when maxed out for overdrive otherwise, it’s rarely as rich, full and convincing as that delivered by the Swingland in this scenario.

Increasing midrange also adds a little gain to the signal, or is at least perceived as such, as the core of the guitar’s frequency range punches harder, making this a doubly powerful control. And after all that, let’s not forget the reverb: Roomy and enveloping for a spring-based effect, it also tolerates maxing-out like few amps I’ve played, without odd oscillation or artifacts setting in.

All in all, then, a job well done from Bartel Amplifiers. And if it’s undoubtedly an expensive acquisition, the Swingland should also provide endless satisfaction and creative inspiration to those whose playing situations demand it.

SPECIFICATIONS

CONTACT Bartelamps.com

PRICE $4,195 street

CHANNELS 1

CONTROLS Volume, midrange, tone; reverb mix and dwell; master volume, presence, harmonic balance

POWER 3 watts

TUBES One 12AX7, two 12AT7, one 12AU7, one 6SN7

EXTRAS Tube-driven spring reverb, 5-pin XLR for Line Out Interface (LOI)

SPEAKER 12" Celestion Alnico Blue

DIMENSIONS 19"x16"x11"

WEIGHT 32 lbs

MADE IN USA

KUDOS A cleverly designed and extremely well-built combo, offering surprising sonic versatility and engaging dynamics for its low-wattage output

CONCERNS It comes with a high price tag, but so it goes in this market these days
